Home /Products/Industrial Rotary Drum Dryer/Manure Rotary Drum Dryer Cow Dung Drum Dryer Machine

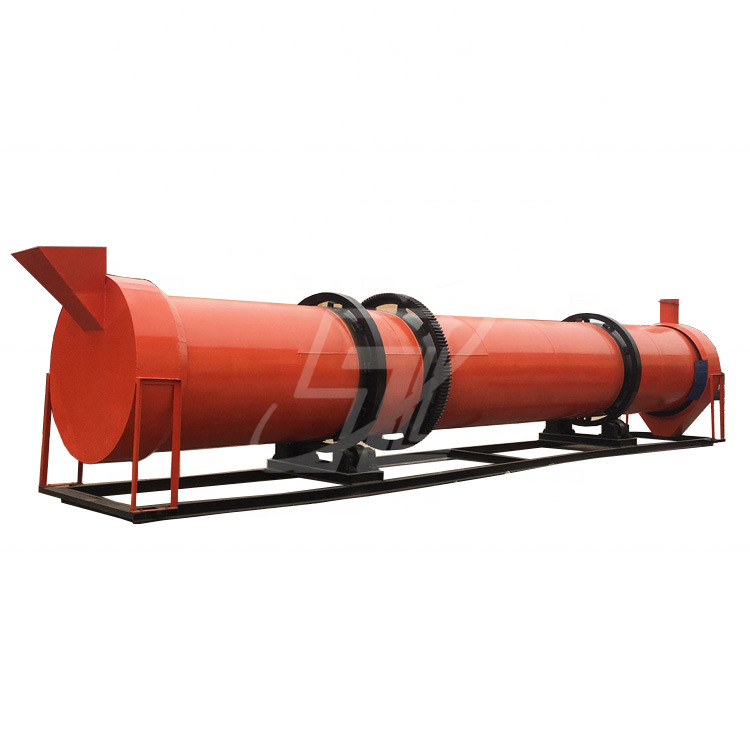

Manure Rotary Drum Dryer Cow Dung Drum Dryer Machine

1.0 Sets
MOQ
Manure Rotary Drum Dryer Cow Dung Drum Dryer Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: 380v
Power: Depend On The Models
Dimension(L*W*H): Depend On The Models
Key Selling Points: Multifunctional
Warranty: 1 Year
Weight (KG): Depend On The Models
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Gear
Evaporation Capacity(kg/h): 5000
Heating Method: Gas Heating
Material: SUS304, SUS304L, SUS316, SUS316L
Name: Eco-Friendly Chicken Manure Pig Manure Cow Dung Rotary Drum Dryer
Price: Negotation
Delivery Time: 15-45 Days
Quality: Advanced Technology
Installation: Engineer Guide
Operation: Stable Operating
Spare Parts Supply: Anytime
Color: Customer's Request
Advantage: High Capacity
Factory Visit: Welcomed Warmly
After-sales Service Provided: Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location: None
Certification: ISO CE
Basic Infomation
Certification: ISO CE
Payment & Shipping Terms
Packaging Details: Packing and Shipping1)All the wear out spare parts are packed by plastic films and wooden boxes.2)Wire cables are used for fastening the machines.3)FCL: Shipping by standard exporting container.4)LCL: Poly wood case.
Supply Ability: 50 Set/Sets per Month Low Consumption Grown Coal Rotary Dryer / Wood Pellet Rotary Dry
Product Description
Shunzhi Group Advantage:
1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 15,000 square meters;
3. 480 Inventions & Patents
4. Exported over 80 countries,300 global partners;
5. Rank Top10 in China Drying Industry;
6. Customize Drying Production Line.
Shunzhi dryer is suitable for chicken manure, cow dung, feces organic fertilizer, sludge, bean dregs, starch residue, sauce residue, sprayed corn kernels, cassava residue, beer distiller's grains, lees, straw, pasture and other 20-85% moisture content of material Drying. All of our drying process technology according to the characteristics of each biomass material, the size of production, the application requirements, the cost control, the degree of automation, the site conditions etc.
The raw materials are transported by the scraper conveyor to the inside of the rotary drum dryer. The front is equipped with a hot blast stove. The generated hot gas enters the dryer through the fire separation device, and the materials are dispersed by the low- speed rotating bending plate.
In order to allow high-temperature air to flow through the material and perform heat exchange, the drum dryer has a certain angle of inclination, and there is sufficient air volume to push the material forward. Finally, the dried material is discharged from the discharge port, and the temperature generated by the heat source enters the long refractory lining chamber to keep the temperature low. Add auxiliary air to the chamber to maintain low temperature levels.





Below are Installation Sites of Our Customers:
After reach deals, Shunzhi engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.



Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5
700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110







1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
