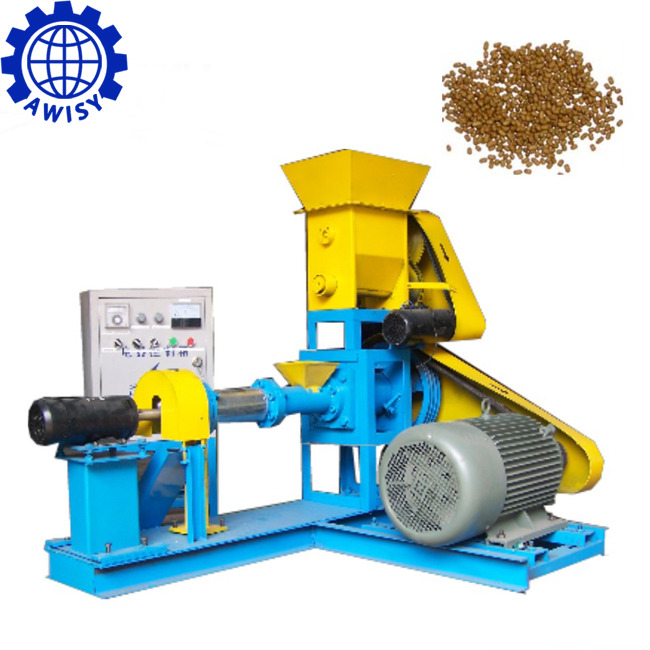

Most popular fish feed mill machine /floating fish feed pellet mill extruder machine
1. Composed of feeding system, extruding system, cutting system, controlling system.
2. Auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.
3. Combined main shaft can adapt a variety of materials
4. Screw barrel are designed optimized to get longer service life lower production cost.
5. Cutting system adopts advanced frequency conversion and speed-adjusting system of sophisticated structure, the size of granules is adjustable.
6. Works well in long time and continuous using, running steadily and reliability, easy to operate.
Working principle( floating fish food machine ):
After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required
Technical parameter:
| Model | Screw diameter | Capacity(kg/h) | Main power(kw) | Feeding power(kw) | Cutting power(kw) |
| DGP50 | 50mm | 60-80 | 11 | 0.4 | 0.4 |
| DGP60-C | 60mm | 120-150 | 15 | 0.4 | 0.4 |
| DGP70-B | 70mm | 180-250 | 18.5 | 0.4 | 0.4 |
| DGP80-B | 80mm | 300-350 | 22/27 | 0.4 | 1.1 |
| DGP90-B | 90mm | 400-450 | 30/37 | 1.1 | 1.5 |
| DGP120-B | 120mm | 500-700 | 55 | 0.6 | 2.2 |
| DGP135-B | 133mm | 0.8-1t/h | 75 | 1.1 | 2.2 |
| DGP160-B | 155mm | 1.2-1.5t/h | 90 | 1.5 | 2.2 |
| DGP200-B | 195mm | 1.8-2t/h | 132 | 1.5 | 3.0 |
Our product
Spare parts:
Fish feed production line( floating fish food machine ):
Raw material---crushing system---Mixing system---Extruding system----Drying system----Cooling system---Flavoring system--Packing system
