homemade 200kg/h Small Poultry Feed Equipment Animal Feed Processing Machine
Animal Feed Processing Machine It mainly use biomass from agricultural and forestry processing such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidify it into high-density pellet fuel through pretreatment and processing. Biomass pellet machines are divided into flat die biomass pellet machines and ring die biomass pellet machines.
Function For animal feed production line :
1.Granule/pellet for the fish, chicken, Animal for animal feed.
2.Can be used for Making biomass, sawdust pellet,for bio fuels.
Wood Crusher
Mobile wood chipper can feed wood with a diameter of up to150mm. machine has hydraulic feeding system. It has two feed rollers and also has a system with a hydraulic tank and pump of its own. The hydraulic valve has three gears: forward, stop and reverse. The safety of user is secured with a patented feed stopper operated with the control handle.

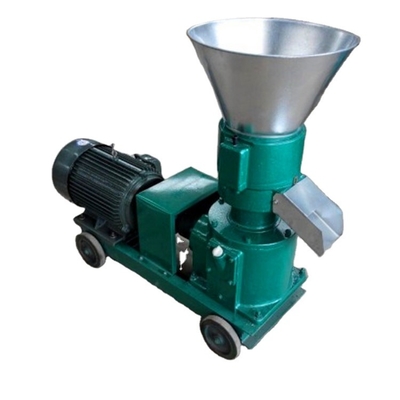

Pellet Machine
Homemade pellet mill is also called flat die pellet machine and flat die pellet press, which are special equipment for compress sawdust and other biomass material into pellet, especially for materials which are difficult to bonding and molding. Our products have been exported to American, German, Russian, Brazil and other 50 countries.
Common issues and methods:
1. There are many precision bearing parts in the granulator gearbox that need lubrication. After receiving the equipment, add 4L gear oil to the granule machine for the first time; the grease of the granule machine main shaft is added once every 15 days (choose high temperature resistant butter) ;
2. Just after receiving the feed pellet machine, it will not reach the normal output. This is normal. Because it is a new machine, it has not reached the optimal running state at the beginning of operation. After the standby device is used for a period of time, the various parts of the pellet machine are grounded to After the best condition, the output and quality of the pellet machine will reach the best state, please understand;
3. If the output is too low or not discharged, it means that you did not grind the pressure roller and the grinding disc during the grinding process of the pellet machine, or the first use of the grinding hole has poor finish. After grinding the grinding disc with abrasive material or after using for a period of time, the pellet machine Production will reach normal production;
4. The water content of the feed will also affect the discharge. The water content of the raw material is 13-20%. Because the pellet machine has the function of drying and ripening, it can be packaged in 5-10 minutes under normal temperature conditions;
5. The gap between the granule press wheel and the grinding disc is too large, which also leads to no discharge. To adjust the gap between the pressure roller and the grinding disc, screw the pressure roller with one hand, adjust the bolt, and adjust the pressure roller to the two sides to shake it. If it is slightly tight, it means that the pressure roller and the grinding disc have been adjusted;
6.If there is noise during the operation, it should stop in time, immediately check whether the bearing and various parts are loose, and whether there are any debris in the particle machine, such as small stones and nails, to clean up in time.
|
Model |
Capacity (kg/hr) |
Power(KW) |
Weight(kg) |
Dimension (cm) |
|
BH-210 |
200-300 |
7.5 |
280 |
115*45*95 |
|
BH-230 |
350-450 |
11 |
300 |
138*46*100 |
|
BH-260 |
500-600 |
15 |
315 |
130*53*105 |
|
BH-300 |
700-800 |
22 |
600 |
145*62*120 |
|
BH-360 |
800-900 |
22 |
795 |
160*67*145 |
|
BH-400 |
1000-1200 |
30 |
1000 |
160*67*145 |
Packing Machine
bag weighing packing machine,Particle packing machine, for granular, good fluidity materials designed by particle packing machine, it has a high weighing accuracy, easy to operate, reliable, fully functional and other characteristics, can be widely used in feed, food , food, seeds, metallurgy, pharmaceutical, petrochemical, non-metallic mineral, chemical, mineral, rubber, leather, fertilizer and other industries
Our Machine adopt word-famous brand for the key electronic elements, pneumatic and hydraulic system to ensure high quality and reliable of the Agriculture machinery and feed machinery After the unremitting efforts of all staffs , Mikim won the approval and trust of the customers with the excellent performance , advanced technology and good reputation.
Our machines are widely used in various fields of China and have exported to Southeast Asia, Europe, Africa, South America, Middle East Countries, and other areas. Europe technology, perfect performance. Mikim -Machine is your reliable mechanical supplier.
We have very attractive prices and looking for oversea agents ,welcome contact us for further information and you will be surprised of the significant savings that your company can achieve by working with us.
PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.
DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order
