Home /Products/Flat Die Pellet Machine/Machinery Repairs High Productivity Workshop Portable Pellet Machine R-Type Flat Die Agriculture Small Biomass Feed Pellet Making Machine For All Animals

Machinery Repairs High Productivity Workshop Portable Pellet Machine R-Type Flat Die Agriculture Small Biomass Feed Pellet Making Machine For All Animals

1.0 Pieces
MOQ
$4,999.00(>=1 Pieces)
Price
Machinery Repairs High Productivity Workshop Portable Pellet Machine R-Type Flat Die Agriculture Small Biomass Feed Pellet Making Machine For All Animals
Features Gallery Product Description Request A Quote
Features
Specifications
Raw Material Processed: Grass
Pellet Diameter (mm): 2.5 - 10
Output (kg/h): 300 - 800 Kg/h
Voltage: 380V/50HZ
Dimension(L*W*H): 1270*580*1150mm
Motor Power (Kw): Other
Power (kW): Other
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Other
Key Selling Points: Easy To Operate
Weight (KG): 350 KG
Marketing Type: New Product 2020
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year
Core Components: Motor
Colour: Blue
Name: Animal Feed Pellet Mill
Basic Infomation
Payment & Shipping Terms
Product Description

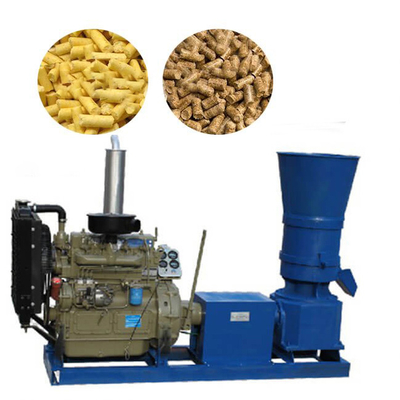

Introduction of AZSP-360D R-type Pellet Machine
AZSP-360D is diesel powered R-type pellet mill. R-type pellet mill is called rotating roller type pellet machine where the rollers
turn on the top of a stationary die.This biomass pellet machine is geared lower about 100-150 RPM. This pellet mill can pelletize
almost all kinds of materials, such as sawdust, wood chips, grasses, alfalfa, corn stalks, cotton stalks, wheat straws,newspapers, leaves, hay, grains and so on. It makes the harder material like wood material into pellets more quickly and easily than D-type pellet machine.
Specifications of AZSP-360D R-type Pellet Machine
Model
Power
Capacity
Die Diameter
Packing Size
AZSP-360D
55HP
Wood Pellet: 300-360kg/h Feed Pellet: 600-800kg/h
360 mm
1270*580*1150mm
Raw Materials
Roller Driven Pellet Mill Working Principle
Raw materials are fed into the feeding chamber and distributed on the flat die evenly. The rollers driven by the main shaft rotates on the top of the material bed continuously and press the material into the die holes. Then the materials are molded into the cylindrical shape and extruded out after a period of time. The rotary cutting knives cut the pellets into the required size
and then sent out by the discharge plate.
Features of AZSP-360D Diesel Flat Die Pellet Machine
1. It applies long diameter rollers, which makes the machine have a larger capacity than D-type pellet machine, high molding rate.
The wood pellets made by this machine have good shape, good durability, high hardness and high density.
2. Both the rollers and the flat die have passed wear-resistant process. The two side of the flat die is exchangeable, which extends the lifespan of the machine.
3. All bearings adopt the leak proof structure in order to prevent dust and improve the working environment.
5. Spare parts are easy to change and save the maintenance cost.
6. Simple operation, just one or two worker are enough.
7. The material is visible during pelletizing and it is easy to trouble shooting.
Applications of This Portable Pellet Maker

1. With better function and higher price than D-type pellet machine, it is the right choice for customers who have a strict requirement and flexible budget.
2. This pellet machine is designed with the rotating roller to process a wide range of biomass materials and has high efficiency and long service life; it is great for large farms for making feed pellets.
3. This R-type pellet machine with superb gearbox has a smarter die and roller movement. It has good pelletizing effect of processing wood materials, so it is mostly used in small wood pellets plants.
4. It is more suitable for processing hardwood than D-type pellet machine, so if you have hardwood, this R-type diesel pellet mill is advisable for you to make fuel pellets at home.
Company Profile
Zhengzhou Songbai Machinery Co. Ltd is devoted to offer biomass pellet machine series , carbonization furnace series, mobile gas heater, organic fertilizer production series, and animal feed productione series. We can provide various solutions for different raw materials, which can meet the market demands. We had passed the ISO9001 quality system and got the CE certification for all of our machines. So far, we have successfully finished many customized projects according to our clients’ demands and we are capable of providing the best solution and support as per your requirement.We have exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc Our equipment is to convert waste biomass products into environmentally friendly new energy that can be effectively utilized.
According to the different needs of customers, we provide corresponding equipment and solutions. Customers not only save costs and maximize benefits, but also protect the environment .
What we offer:
1) Good quality machine
2) Highly competitive prices
3) Timely and effective after-sales service
4) Best professional team of guide and assemble
5) Effective OEM&ODM service
Workshop Environment
Product packaging
Our Team
Certifications

FAQ

1. Could I have prices of your products?
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours

2.How much the Courier freight will be for the samples?
Courier freight depends on the quantity,weight and carton size and your area.

3.How about the package?
Net weight: as the customers’ requirement

4. How does your factory do regarding quality control?
My company always attaches great importance to quality controlling from the very beginning to the very end.

5. How about your delivery time?
Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on
the items and the quantity of your order.
