Product description

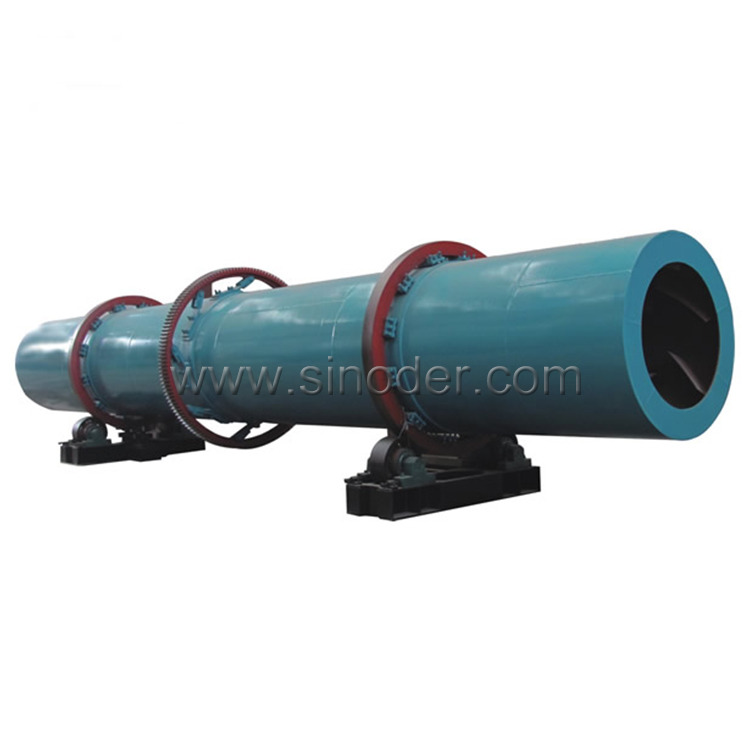

Customized Fertilizers/Sludge Slurry Rotary Drying Machine Drum Dryer
Rotary drum dryer can dry many different raw materials contain moisture, such as sawdust, coal, coal slurry, slag, fertilizer, sand, chicken manure, cassawa and sugar bagasse, etc. They are widely used in building materials, metallurgy, and chemical industry.
Rotary drum dryer cosists of rotary body, lifting blade, driving device, supporting device, sealing ring. Heating source can be coal, charcoal, wood, gas, electricity, oil, wind power, etc.
Working principle
Wet materials are sent to dryer by conveyor belt or elevator, or in order to feed materials continuously and smoothly, you can add a feeder. When installation, the drum need have a 3-5º inclination, to ensure the materials move from the upper part to lower part smoothly. In upper part, we can build up a brick heating stove or coal-gas producer, make the hot air enter into dryer, and materials and hot airs are contacted completely, due to constantly raised and shed materials, then wet materials are dried.
Main technical parameter
|
Model (mm) |
Rotation speed (r/min) |
Feeding temperature (degree) |
Power (kw) |
Capacity(t/h) |
Weight (t) |
|
600x6000 |
3-8 |
<=700 |
3 |
0.5-1.5 |
2.9 |
|
800x8000 |
3-8 |
<=700 |
4 |
0.8-2.0 |
3.5 |
|
800x10000 |
3-8 |
<=700 |
4 |
0.8-2.5 |
4.5 |
|
1000x10000 |
3-8 |
<=700 |
5.5 |
1.0-3.5 |
5.6 |
|
1200x10000 |
3-8 |
<=700 |
7.5 |
1.8-5 |
14.5 |
|
1200x12000 |
3-8 |
<=700 |
11 |
2-6 |
14.8 |
|
1500x12000 |
2-6 |
<=800 |
15 |
3.5-9 |
17.8 |
|
1800x12000 |
2-6 |
<=800 |
18 |
5-12 |
25 |
|
2200x12000 |
1.5-6 |
<=800 |
18.5 |
6-15 |
33 |
|
2200x18000 |
1.5-6 |
<=800 |
22 |
10-18 |
53.8 |
|
2200x20000 |
1.5-6 |
<=800 |
30 |
12-20 |
56 |
|
2400x20000 |
1.5-5 |
<=800 |
37 |
18-30 |
60 |
|
3000x20000 |
1.5-5 |
<=800 |
55 |
25-35 |
78 |
|
3000x25000 |
1.5-5 |
<=800 |
75 |
32-40 |
104.9 |
Company information
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
