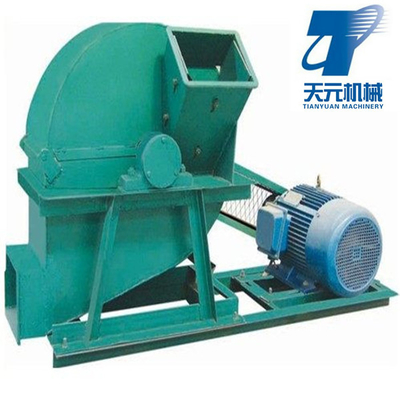

Factory Direct Sell agricultural waste crusher wood sawdust crusher and shredder machine
bamboo crusher machine crushing wood or log ,other material into sawdust for making briquette,pellet,composting fertilizer,cultivated mushroom.
wood sawdust crusher machine How it works:
bamboo crusher machine blade and high-speed airflow impact of the collision crushed a double function in one, and at the same time to complete the micro-material sorting processing operations. Blade cut shredding process, the rotor speed airflow, cut with the blade rotation, the material in the gas stream to accelerate, and repeated shock to the material at the same time by the double crush to accelerate the crushing of materials
wood sawdust crusher machine Data parameters
Model. | TYBX400 | TYBX600 | TYBX800 | TYBX1000 |
Cutter disc dia.(mm) | 400 | 600 | 800 | 1000 |
Power(kw) | 11 | 15 | 30 | 55 |
Blade (Pcs) | 4 | 4 | 4 | 8 |
Hammer (pcs) | 12 | 12 | 32 | 60 |
Feed opening size. (mm) | 150×150 | 160x160 | 220x220 | 300×350 |
Max.feeding Dia.mm | 110 | 150 | 200 | 300 |
Rotating speed(r/min) | 500 | 450 | 400 | 500 |
Final size (mm) | 1-20mm | 1-30mm | 1-40mm | 1-40mm |
Output(t/h) | 0.3-2 | 0.4-3 | 1-4 | 2-6 |
We have 3 different wood sawdust crusher machine :
1. TYBX Blade Crusher (Special for logs )
suitable for tree branch,wood debris,wood offcut ,board,straw,corn stalk,wood chips,etc
3. TYMX Multi-functional Sawdust Machine
Combination of TYFS hammer mill and TYBX blade crusher
(with two feeding hole ,one for logs,another opening for waste wood,tree branch and other wood debris.
