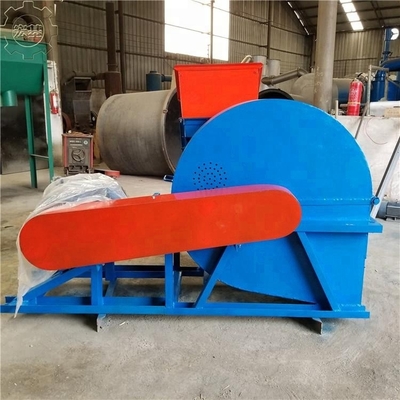

1000kg/hour wood crusher machine for producing sawdust
Choose the most suitable crushing machine
It’s necessary to use a wood crusher if your raw material is raw wood of larger size. Wood crusher can process
raw wood with size less than 200mm(diameter) and moisture below 30%. After crushed, the output size can
reach diameter 3-5mm , which is suitable for further drying and pelletizing.
About raw material
The wood crushers are for grinding the Bio-mass like straw, stalk and wood chip, tree branch
and forest waste to be powder of less than 3-5mm, which is right size before pelletizing and briquette.
Specification
Model | Power kw | Capacity kg/h | Net/Gross Weight kg | Package volume m |
FS-I | 11 | 400-500 | 325/375 | 1.3*0.9*1.0=1.17 |
FS-II | 15 | 700-800 | 450/500 | 1.5*1.05*1.2=1.89 |
FS-III | 30 | 800-1000 | 850/950 | 1.9*1.2*1.3=2.96 |
The features of wood crusher machine :
1. The wood crusher for wood of just uses one motor.
2. The wood crusher machine for producing sawdust with removal device reduces the power, saving energy, green, no pollution, and no dust.
3. High production with dozens of tons of sawdust. Output is determined by the fineness.
4. It repaired conveniently and later just need to replace the cutter wearing parts etc.
5. Benefit with less investment and high production efficiency.
6. Simple structure, compact layout, low energy consumption, equal material.
It is also ideal machine for farming material like dry or fresh seeding of yam, peanut, rice and
other plants, husks, maize, wheat, beans of all grain.
It is composed of machine body, knife chipping part, chips re-crush part and sieving part ,ect.
It combines both chipping and crushing in one machine, can make sawdust in one passage, no
need to use wood chipper for preprocessing of wood logs.
To ensure security, the feed inlet of this crushing equipment adopts self-sction design to avoid
serious damage to operators.
raw material
the finished product
We have a perfect aftersales service system and provide customers with prompt and through
service.certainly our price are most competitive and reasonable,all order wil be supplied
within the stipulated period.
FAQ
Q Q: What is the MOQ ?
A: A:1set
Q Q: Can I add different mould?
A: A:Sure!
Q Q: Can I get a lower price if I order large quantities?
A: A: Yes, cheaper prices with more orders.
Q Q: Can I add or delete items from my order if I change my mind ?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
Q: Do you have engineers that can teach how to make the machine work ?
A: Yes, we will send you assembly manual and the operations manual, and our engineer also go to help Installation and debugging
Q Q: When you ship my order?
A: Normally 3-5 working days after receiving your pre-payment, but it can be negotiated based on order qty and production schedule.
Q Q: How about the quality guarantee period?
A: A:One year!
Q Q: How can you guarantee the production quality ?
A: Our production quality follow CE standard. We have more than 20 years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product and testing the machine before package.
