Home /Products/Biomass Rotary Dryer/Chemicals Processing Mechanical Rolling Type Drying Machine Cassava Powder Fiber Dryer

Chemicals Processing Mechanical Rolling Type Drying Machine Cassava Powder Fiber Dryer

1 Piece
MOQ
$8,000.00(>=1 Pieces)
Price
Chemicals Processing Mechanical Rolling Type Drying Machine Cassava Powder Fiber Dryer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drying Equipment
Application: Chemicals Processing
Condition: New
Key Selling Points: Energy Saving
Warranty: 1 Year
Weight (KG): 3500
Applicable Industries: Manufacturing Plant, Energy & Mining
Showroom Location: Spain
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Gear, Motor
Keywords: Dryer Drying Machine
Heating Source: Natural Gas
Temperature Range: Under 700 ℃
Capacity: 0.8--34 T/h
Power Supply: 4--55kw
Color: Customers Request
After-sales Service: Provided
Installation: Engineer's Guidance
Advantage: Low Consumption High Efficiency
MOQ: 1 Set
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wood case package Container package International Universal Package If you have other requirements on the packaging, please contact us, your satisfaction is our greatest pursuit
Product Description

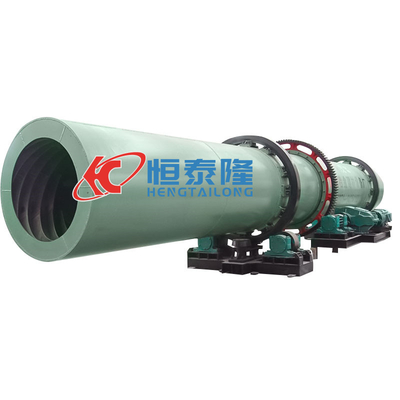

Rolling type drying machine cassava powder fiber mechanical dryer
The Rotary Drier is widely used in the field of building materials, metallurgies, chemical industry, cement and so on.
The Rotary Drier is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made of rotary body, lifting blade, driving device, supporting device etc. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.
It is a drying machine used to dispose masses of materials. Single drum dryer is widely used in the field of building materials,metallurgies, chemical industry, cement and so on. it can dry slag, coal powder, mining powder, clay, sand, limestone and so on.
It is made into rotary body, lifting blade, driving device, supporting device etc. It adopt the reasonable operation parameters and it also reduce the coal and power consumption by more than 10- 15% increases the output by more than 10- 15% compared with the general dryers.
Working principle
1.The material first goes into the inside drum, because there are the spiral shape boards fixed in the drum, when the dryer make rotary working, the spiral shape board will stir the material and make the material do movement.
2.When the material reaches the right side of the drum, it will go into the second drum for further drying.
3.The same working principle, the material then goes into outside drum, during the drying working process, the material will make three times drying, so the material can be dried completely in this process.
(rotary dryer in food industry / rotary kiln dryer for sale / rotary kiln dryer )
Technical Parameter
Spec.
(Dia.x Length mm)
Volume(m³)
Capacity (t/h)
Gradient(%)
Highest Inlet Air
Temperature(℃)
Rotate Speed(r/min)
Main Motor(kw)
Φ600x6000 rotary kiln dryer for sale
1.7
0.5-1.5
3~5
700~800
3~8
3
Φ800x8000
4.1
0.8-2.0
3~5
700~800
3~8
4
Φ800x10000
5.1
0.8-2.5
3~5
700~800
3~8
4
Φ1000x10000
7.9
1.0-3.0
3~5
700~800
3~8
7.5
Φ1000x12000
9.4
1.2-3.2
3~5
700~800
3~8
11
Φ1200x8000 rotary kiln dryer
9
1.9-2.4
3~5
700~800
3~8
7.5
Φ1200x10000
11.3
2.2-3.0
3~5
700~800
3~8
7.5
Φ1200x12000
13.6
2.4-3.2
3~5
700~800
3~8
7.5
Φ1500x12000
21.2
4.5-5.7
3~5
700~800
2~6
15
Φ1500x14000 rotary dryer in food industry
24.7
5.3-6.6
3~5
700~800
2~6
15
Φ1500x16000
26.5
5.7-7.1
3~5
700~800
2~6
15
Φ1800x12000
30.5
6.5-8.1
3~5
700~800
2~6
18.5
Φ1800x14000
35.6
7.6-9.5
3~5
700~800
2~6
18.5
Φ1800x16000
40.7
7.8-10.2
3~5
700~800
2~6
18.5
Φ2000x18000
56.5
8.4-12.3
3~5
700~800
1.5~6
22
Customer case
OUR WORKSHOP
We are a real manufacturer, not a trading company. We have the best after-sales service. The complete set of markene production is produced by ourselves, without the need to buy different machine connection product lines from different manufacturers.
(rotary dryer in food industry / rotary kiln dryer for sale / rotary kiln dryer )
Packing Details &Delivery Time
Packaging Details: Standard export packing, Spare parts in wooden case, big machines loaded in container,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.

Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20 working days.
