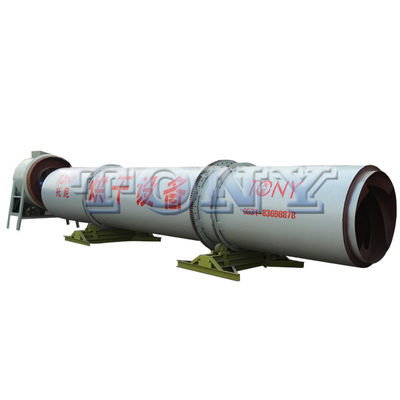

Drying equipemnt rotary drum dryer for pelletizing
1. Introduction for rotary drum dryer
The WOOD sawdust rotary dryer is composed of stove, main rotary body,screw conveyor, cyclone separator, air-lock, fan and matched pipes which can realize to reduce the moisture from 60%-10%
Component: Air heater with heat-exchanger, rotary-cylinder dryer, centrifugal shedder.
Scope: wet wood chips, wood sawdust etc.
2.Raw Material for rotary drum dryer
Sawdust, wood chips,EFB or other biomass raw materials. Rotary dryer is also widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
3.Features for rotary drum dryer for wood
a. Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage.
b. Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients;
c. Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.
4.Structure for rotary drum dryer
Rotary dryer is mainly composed of heating device,feeding device, supporting device, cylinder, gears, discharging device and so on. Rotary dryer’s main body is a rotary cylinder with a certain inclination, equipped with combustion chamber, exhaust device, dust collector, and feeding device. High-temperature flue gas is used as the drying medium, which enters the dryer under the suction of ventilation device
5.Working principle for rotary drum dryer
Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
6.Technical parameters of rotary drum dryer
Model | Power(KW) | Yield(T/h) |
THG10-12 | 4 | 02 |
THG12-12 | 5.5 | 0.3 |
THG15-12 | 7.5 | 0.5 |
THG15-24 | 11 | 0.8 |
THG18-12 | 11 | 0.7 |
THG18-24 | 15 | 1.2 |
THG20-12 | 18.5 | 0.9 |
THG20-24 | 22 | 1.5 |
7.More Details for rotary drum dryer
8.TONY Shipping to All over the World
9.TONY Exhibition and Clients all over the World
10.TONY CE Certificate
11.TONY Biomass Pellet Production Line
About us:
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mills, feed pellet mills, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
We need to know:
A.What capacity would your prefer?
-----We supply different capacity from 300TKG/Hour up to 7T/Hour.
B.What is your raw material?
-----According to different raw material(such as hard wood,soft wood,straw,rice hust), capacity is different.
C.What is your raw material size?
D.What is the moisture of your raw material?
-----Better to be under 30%
Our promise to you……
We mainly supply machines for pelletizing as following:
1. The SKJ Series flat die pellet machine with the volume 100kg to 4 ton per hour.
2.TheTY Series ring die pellet machine with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet machinel with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet machine with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper shredder machine
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.
