Professional wood rotary dryer used in pellet production line wood sawdust drying machine

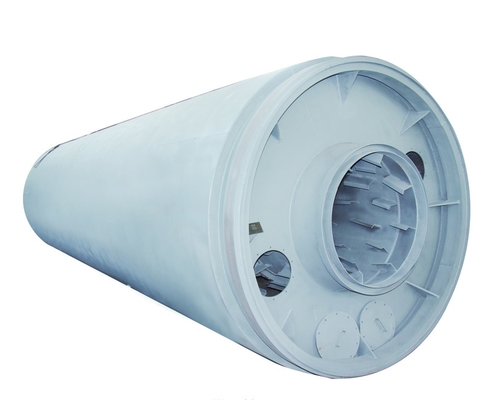

wood rotary dryer
wood rotary dryer
Produtct Features:
1.Widely used in drying big size pellet in chemical, mine, environmental protection and other industries, applied for all kinds of pellet, powder material. Temperature below 400 °C , continuous and bunk drying.
2.Rotary dryer (abbreviate to dryer thereinafter) is used for drying wet materials such as: blast-furnace slag, clunch, limestone, pulverized coal, ore and quartz stone in chemical industry, fertilizer industry and construction material industry; metal extractive ore, lixiviate slag and tailings in metallic ore dressing industry; washed coal, calcium fluoride and iron oxide sheet in steel factories; some other materials which won't happen chemical reaction and produce harmful gas while drying, at the same time, these materials don't fear high temperature and won't be polluted by gas.
| Technical parameter | ||||||
| Item | Size | Inner Dia(mm) |
Length of the dryer cylinder |
Main motor(KW) | Capacity (t/h) |
Highest Temperature (°C) |
|
Three Way Rotary Dryer |
φ2.0×9 | 2000 | 9000 | 2.2X2 | 1-3 | ≤700°C |
| φ2.5×9 | 2500 | 9000 | 2.2x2 | 2-4 | ||
| φ3.0×9 | 3000 | 9000 | 3.0x2 | 3-5 | ||
|
Single Way Rotary Dryer |
φ1.5×15 | 1500 | 15000 | 3.0x4 | 1-2 | |
| φ2.0×15 | 2000 | 15000 | 3.0x4 | 2-3 | ||
| φ2.3×18 | 2300 | 18000 | 4.0x4 | 3-5 | ||
| φ2.5×23 | 2500 | 23000 | 5.5x4 | 5-8 | ||
Drier:
Rotary dryer is the choice for high throughput capacity applications involving high moisture, friable, free-flowing commodity products and by-products. A rotating drum and strategically positioned flights combine to lift and shower product evenly through the air stream. Thermostatically controlled discharge air temperature assures precise final moistures and great sensitivity to varying product conditions. Single-pass or three-pass configurations are available to match product characteristics. Heating options include steam, gas, oil, thermal oil and auxiliary
wood rotary dryer
After the damp raw material is put into the dryer from on end, it is turned over through string-up rake inside the cylinder and distributed uniform in the dryer and contacted with countercurrent hot air fully. It speeds up heat and mass conducting of dry. During the oeriod of dry. raw material is effected by stirring-up rake with gradient and hot air. it can be moved and passed through the dry region and to star valve and then discharge the finished product.
wood rotary dryer
Drying Process:
The best moisture content to pelletizing is about 13-15%. Our rotary dryer is made up of Stove and Main Rotary Dryer, which can realize to reduce the moisture from 60% to 10%. Our stove is fueled by sawdust, wasted wood, coal, which can save electricity consumption largely.
Our is specially designed for energy saving purpose, the outside of the dryer is covered with special cotton material sheet to prevent the heat outrunning.
Liyang Rongda Machinery CO.,LTD. located in Daitou Industrial Zone with 25000 square meters area,Liyang city,Jiangsu province,China.
We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery,biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.
The current products include: hammer mill, ingredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment etc.
wood rotary dryer
wood rotary dryer
wood rotary dryer
wood rotary dryer
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.
Guaranteed Time: One Year
If you have any question, please c ontact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
| 1. Q: Are you a trading company or a manufacturer? |
| A: We are a manufacturer, which has almost 20 years of experience in this industry. |
| 2. Q: How can I get to your company? |
| A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport. |
| You may also come to our city,Liyang city by High speed Railway,just 20-30mins. |
| 3. Q: How long is your guarantee? |
|
A: One year(Calculated from the equipment arrives the customer's side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened. |
| 4. Q: Will you send engineers to install the plant? |
|
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer. |
| 5. Q: Do you have some foreign customers using your equipment? |
|
A: yes, we have.our company has established business relationships with customers in Russia, German,Slovakia,Ukraine,Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq, Iran,Jordan,Saudi Arabia,Syria, Libya etc. |
| Contact Person : | MileyZhu |
|---|
